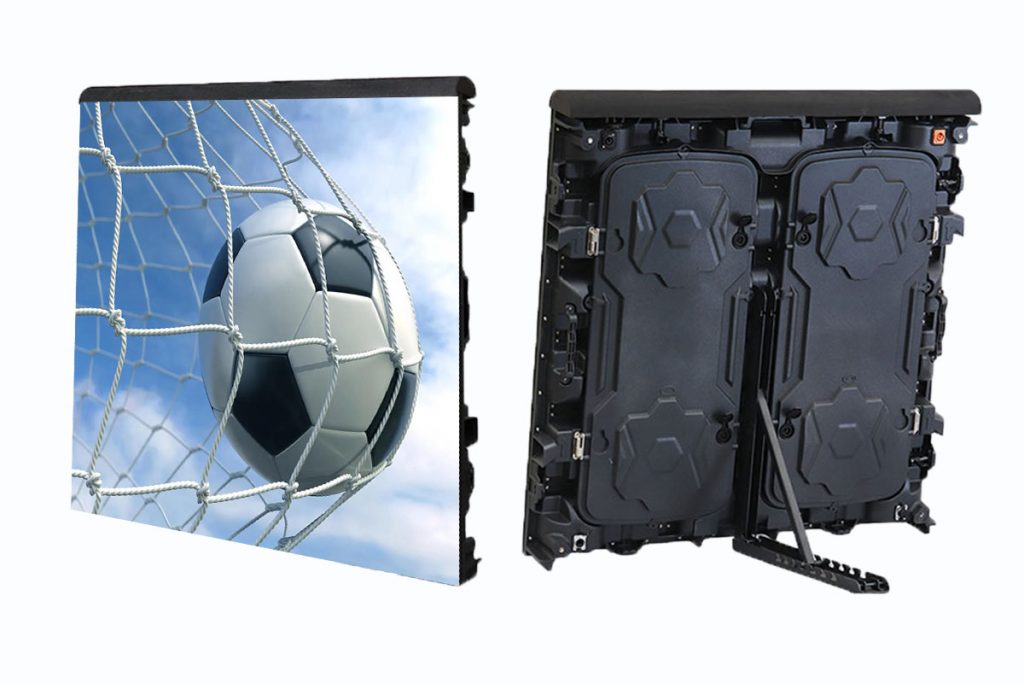

Outdoor 960×960 Stadium Perimeter LED Display

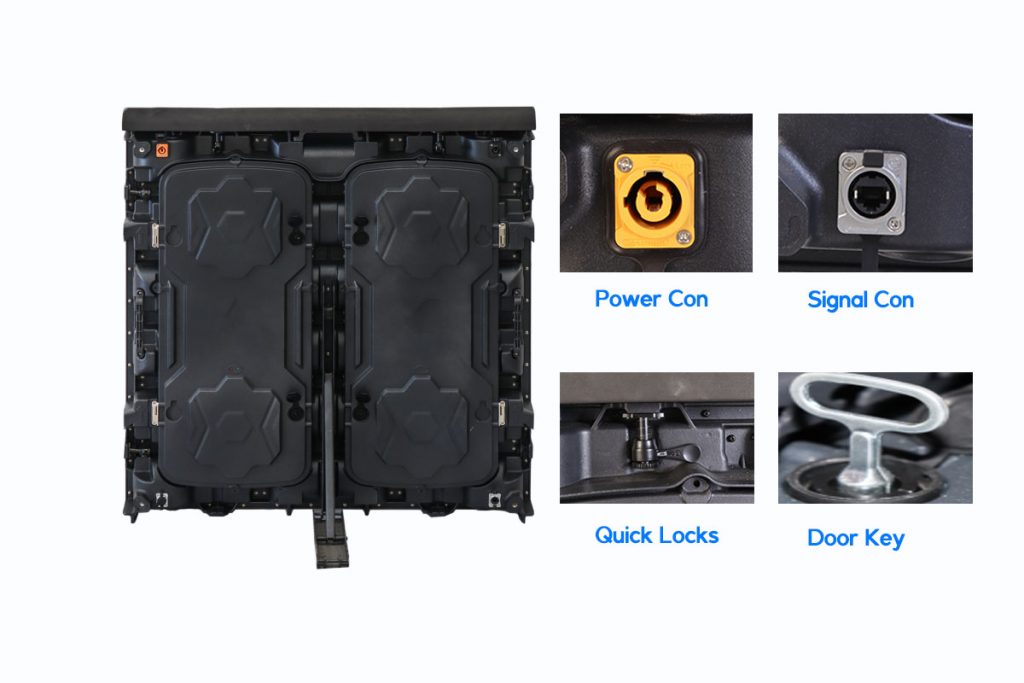

Exquisite cabinet design features
DR 960mm Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps.
Humanization handlebar design make you more easy to move the cabinet.
High refresh rate, no flicker during live switch
Up to 3800Hz refresh rate,without the phenomenon of drag and flicker under the shooting conditions of professional cameras and cameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality。

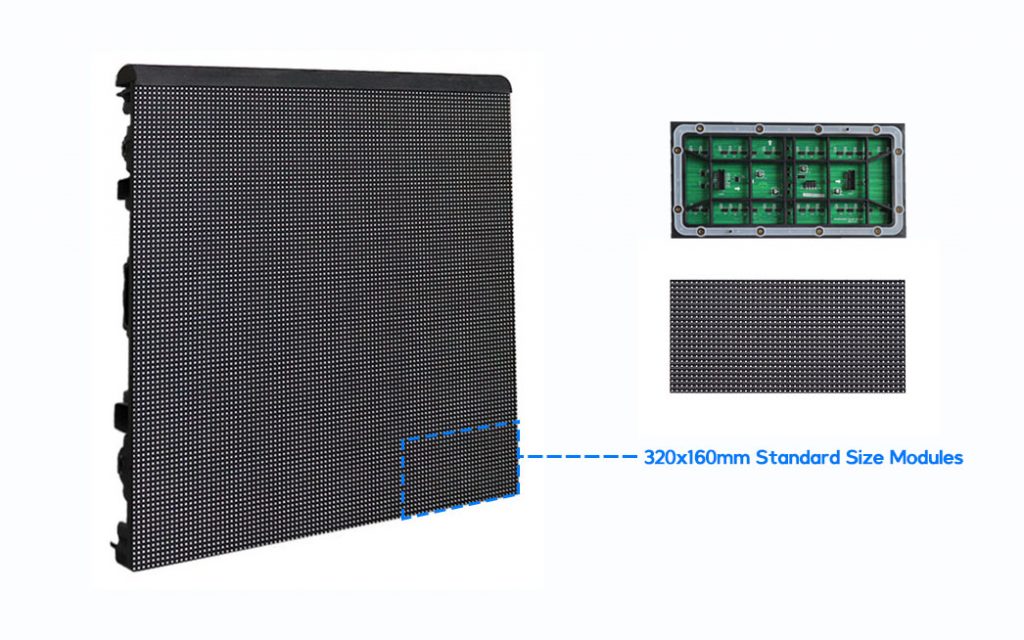

320mmX160mm Standard Size Module
960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance.
also it is very convenient when you change the pixel pitch such as P8mm to P10mm. you dont need to change anything,
just change the module as they have the same module size and structure.

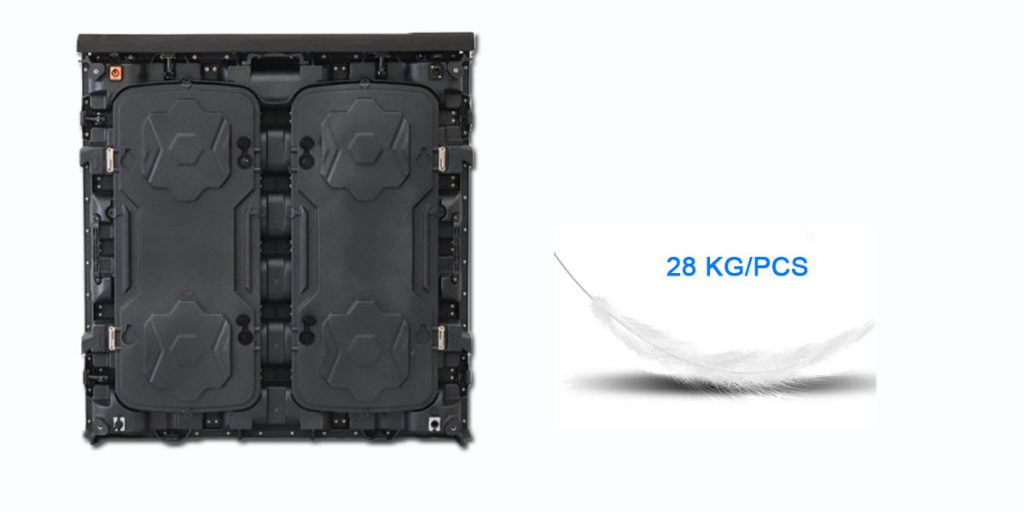

Ultar Light Weight Cabinet
Outdoor stadium 960 series LED display weighs only 28.00kg, is easy to transport, saves your labor costs, and is lightweight, easy to install, assemble and disassemble.
Stadium Perimeter LED Display Parameter
| Pixel Pitch | P8 | P10 (2S) | P10 (4S) |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 15,625 | 10,000 | 10,000 |
| Module Resolution (Pixel) | 40×20 | 32×16 | 32×16 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 28.0 | 28.0 | 28.0 |
| Brightness (CD/㎡) | ≥6,500 | ≥7,500 | ≥6,000 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 600 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 200 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP65(front),IP54(rear) | IP65IP65(front),IP54(rear) | IP65(front),IP54(rear) |
