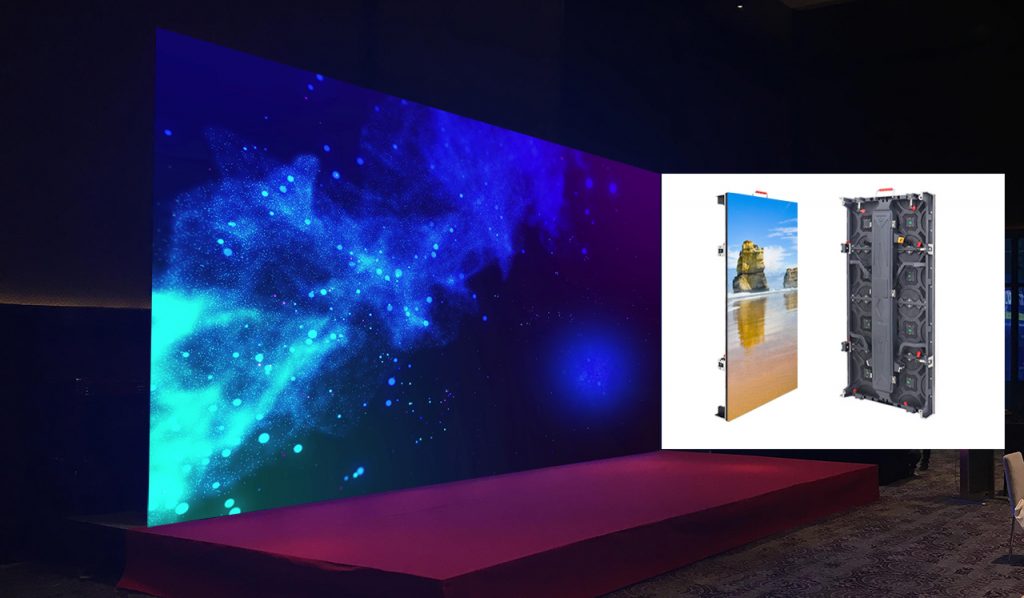

DR-1000R1 Series 500x1000mm Standard Rental LED Display

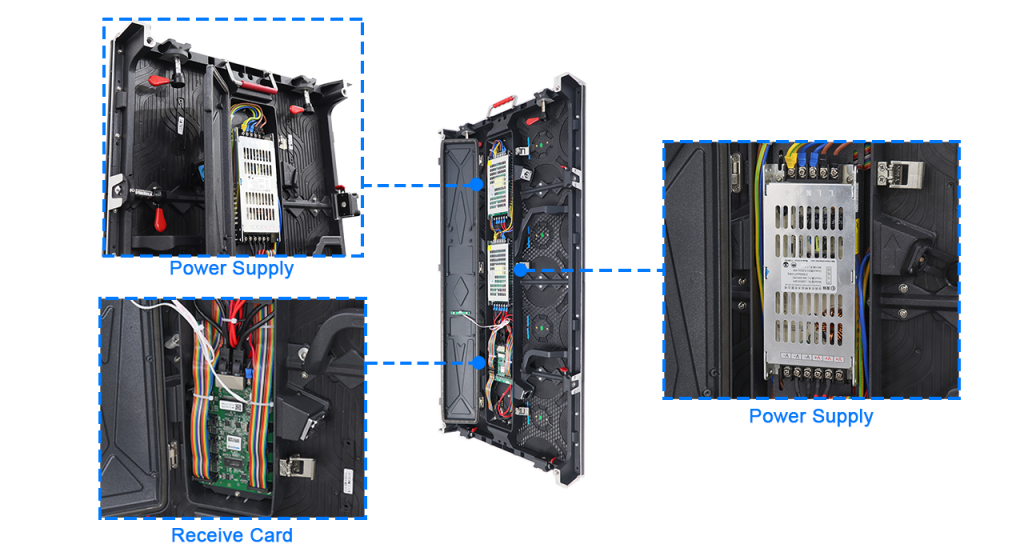

Excellent Heat Dissipation Performance
We launched this cost-effective DR-1000R1 Series,With a special heat dissipation structure,
the heat dissipation is excellent. Fanless design, absolutely silent operation.

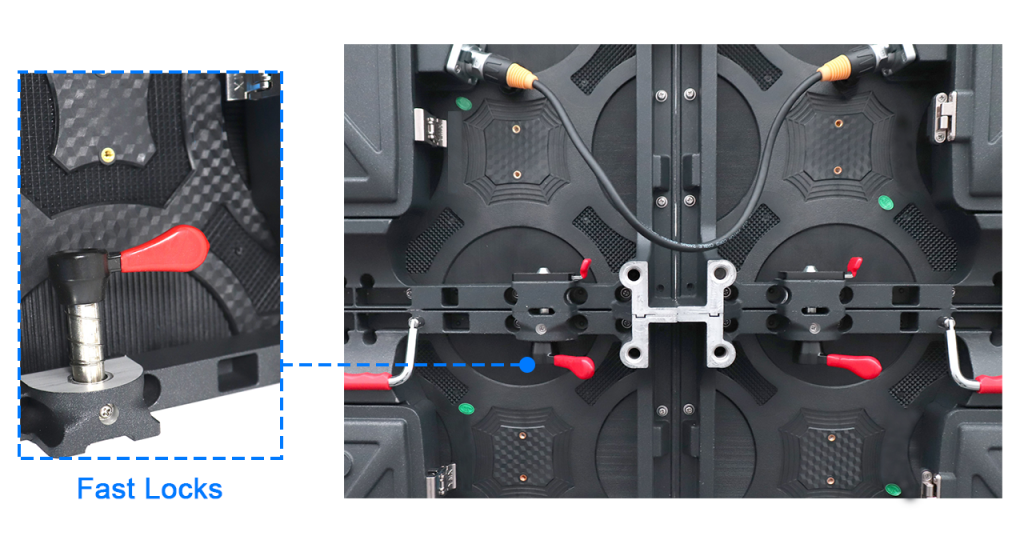

Quick Install
DR-1000R1 Series LED screen Two Fast Locks on Left and Right Side,Ensure faster assembly and better screen flatness.

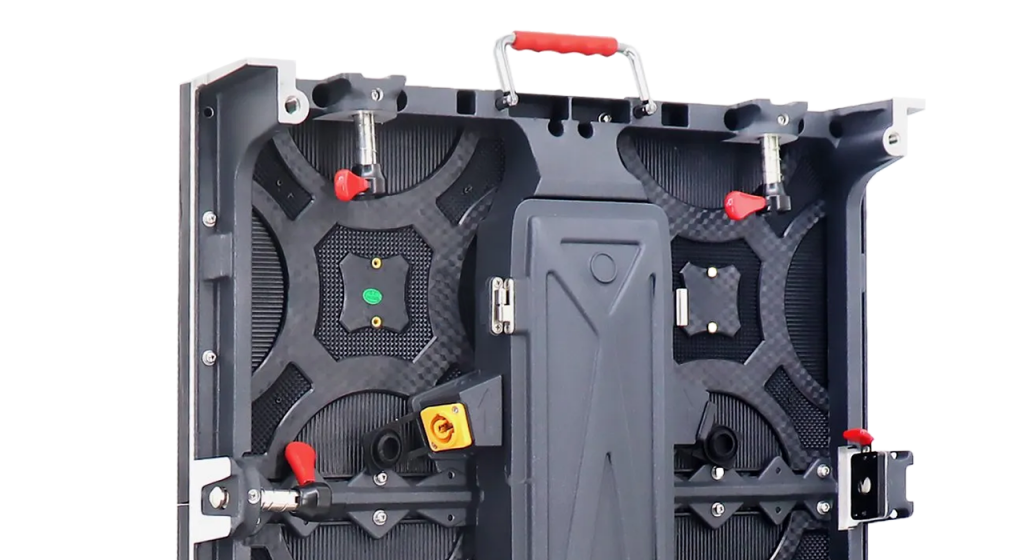

Protective Design
Anti-collision feet on the cabinet bottom

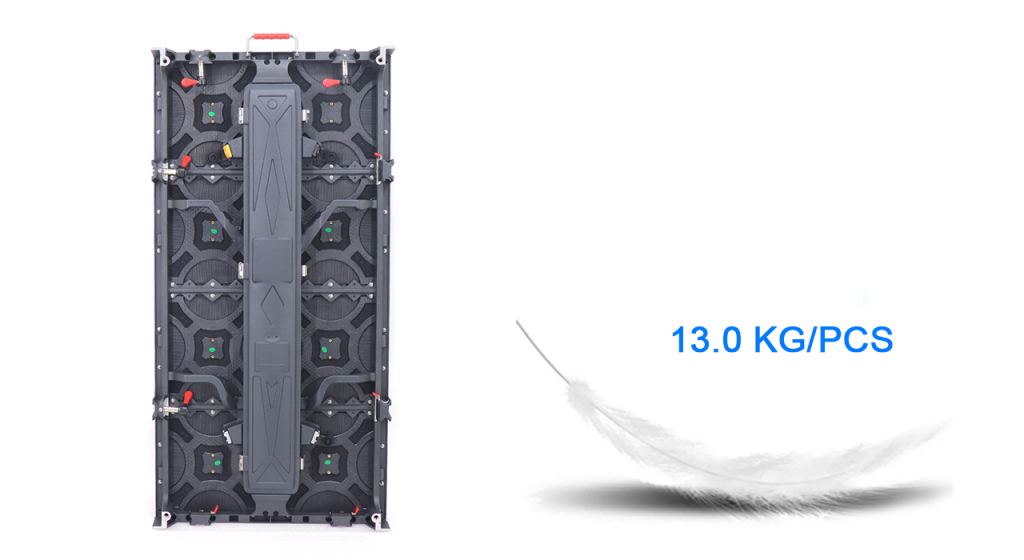

Lightweight And Thin
DR-1000R1 Series LED display cabinet weighs 13KG/pc, easy to operate: one person to install, disassemble and maintain.

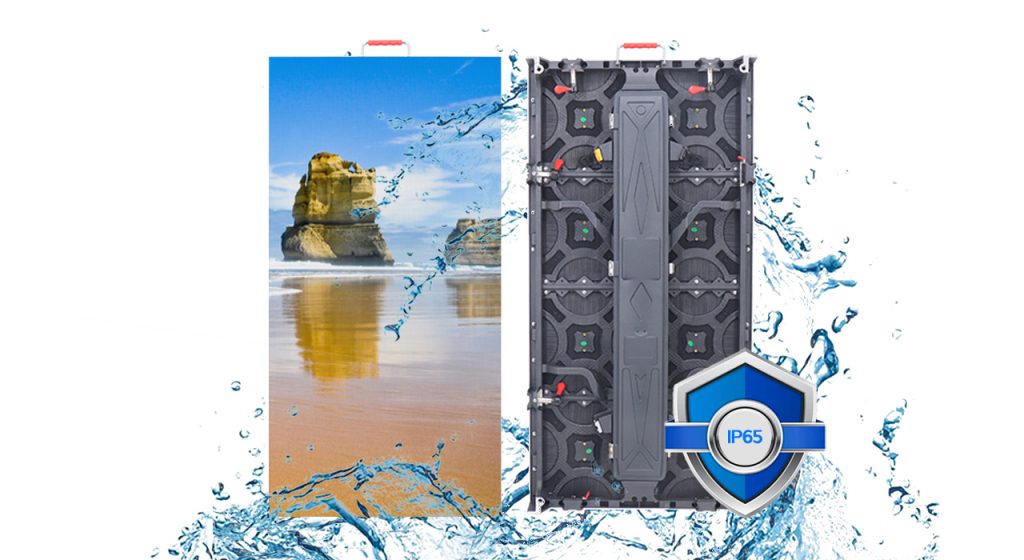

IP65 Dustproof And Waterproof
The DR-1000R1 Series outdoor led display supports IP65 dustproof and waterproof,
it can resists severe weather conditions during outdoor activities.And die-cast aluminum is corrosion resistant.

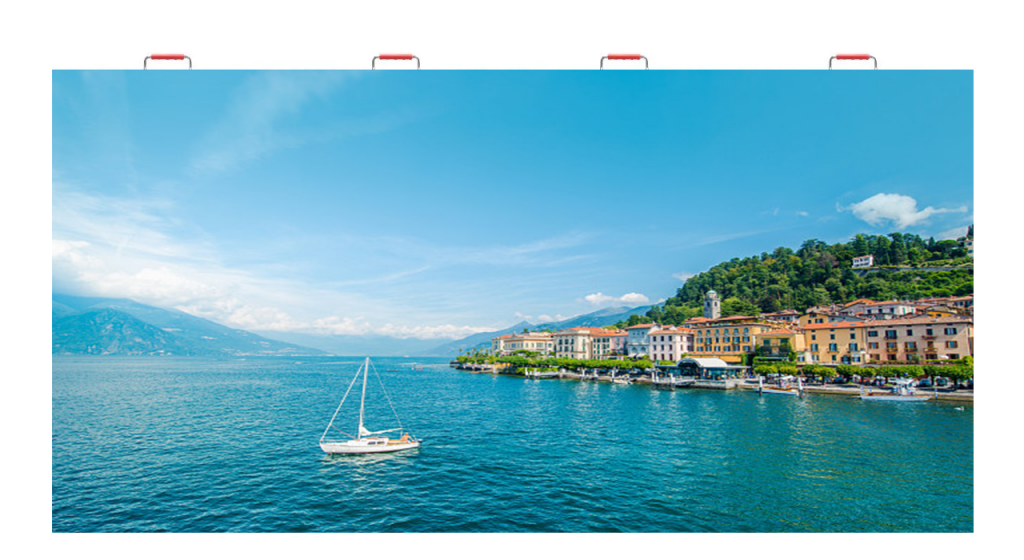

Seamless Display , Better Visual Effects
High precision LED display make seamless splicing image and video display, offering you the perfect visual experience you desire.
The picture quality confronts viewers with an entirely new sensory experience.

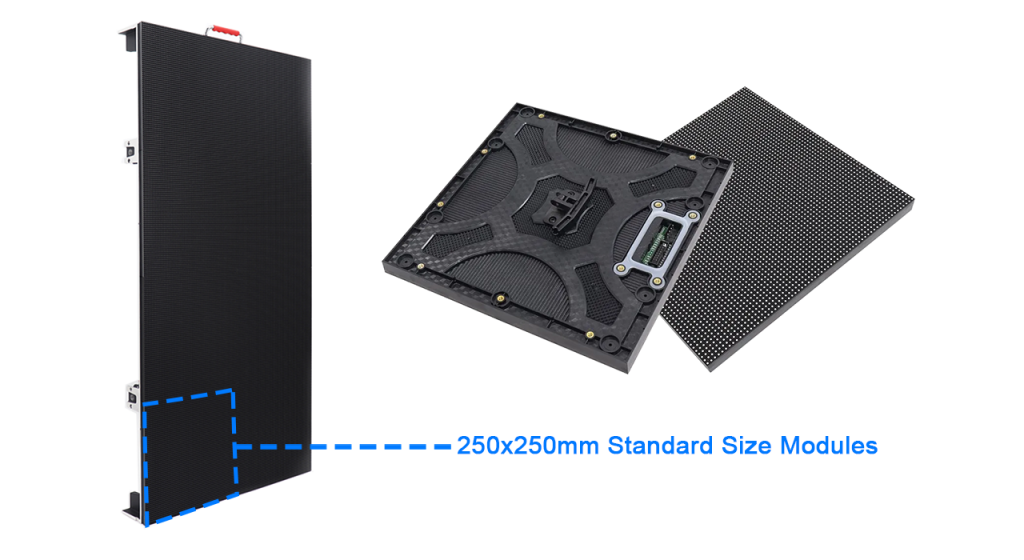

Suitable For 250x250mm Standard Size Modules
500x1000mm LED display with standard size panel: 250x250mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

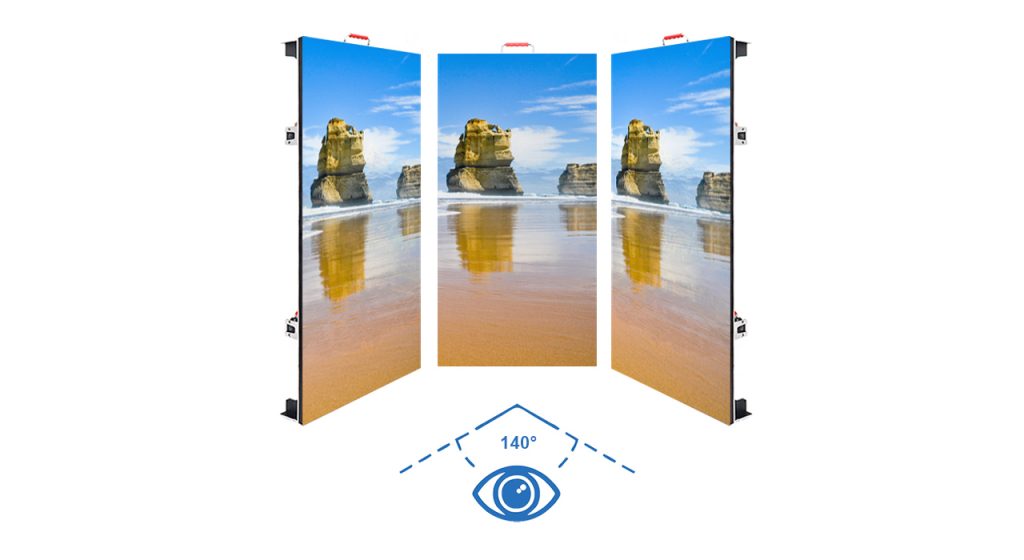

Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Outdoor 500x1000mm Rental LED Display (DR-1000R1 Series) Parameter
| Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 13 | 13 | 13 |
| Brightness (CD/㎡) | ≥6,000 | ≥6,000 | ≥6,000 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x1000mm Rental LED Display (DR-1000R1 Series) Parameter
| Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 |
| Pixel Configuration | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 12 | 12 | 12 |
| Brightness (CD/㎡) | ≥1,000 | ≥1,200 | ≥1,000 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
