640x1920 Indoor Poster LED Screen DR-1920P Series
640×1920 Indoor Poster LED Screen DR-1920P Series

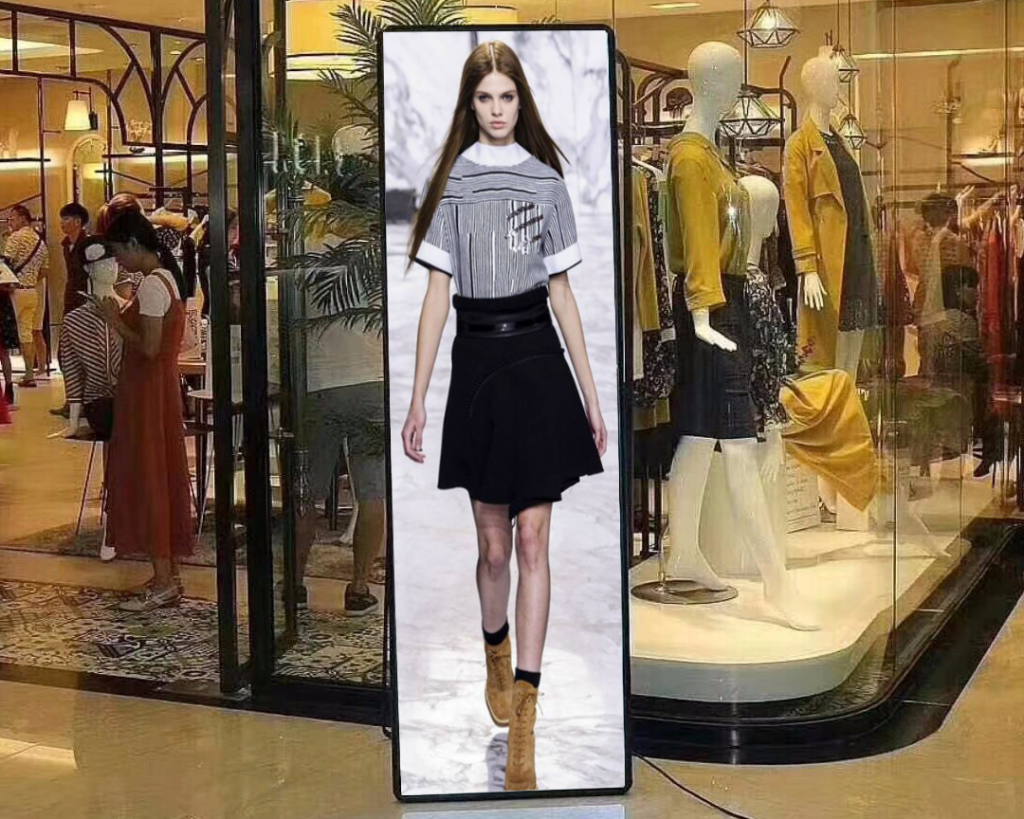

As its name suggests, poster LED screen is widely used as posters for shopping mall,
fashion store, exhibition show, hotel lobby and bank lobby. With its simple structure and easy operation,
poster LED display are used for advertising, information release and product presentation.
Our company designs this poster screen and publishes new products now and then.
640mmx1920mm Standard Size Cabinet
640x1920mm standard size cabinet design.Suitable for all 320x160mm LED display modules

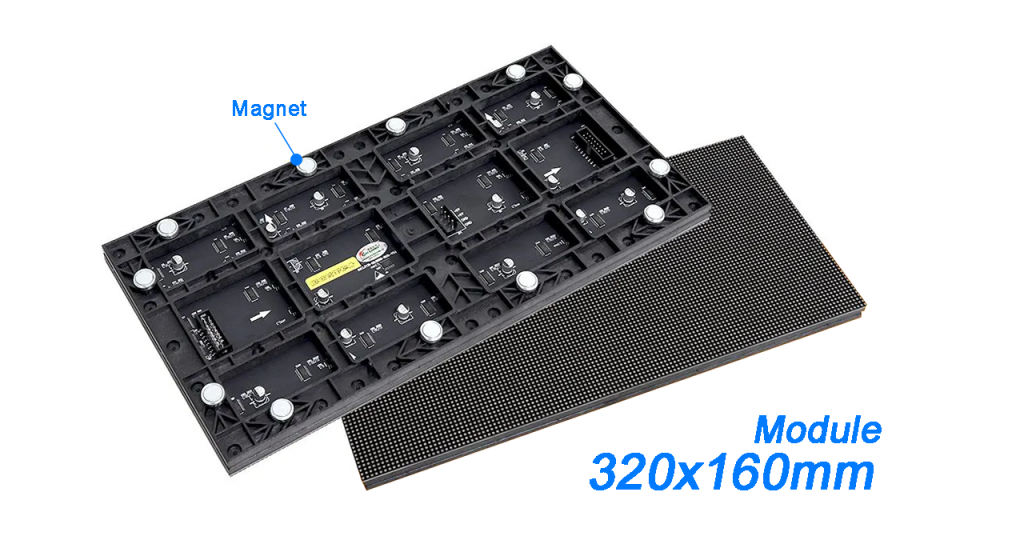

Suitable for 320x160mm Standard Size Modules
640x1920mm LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

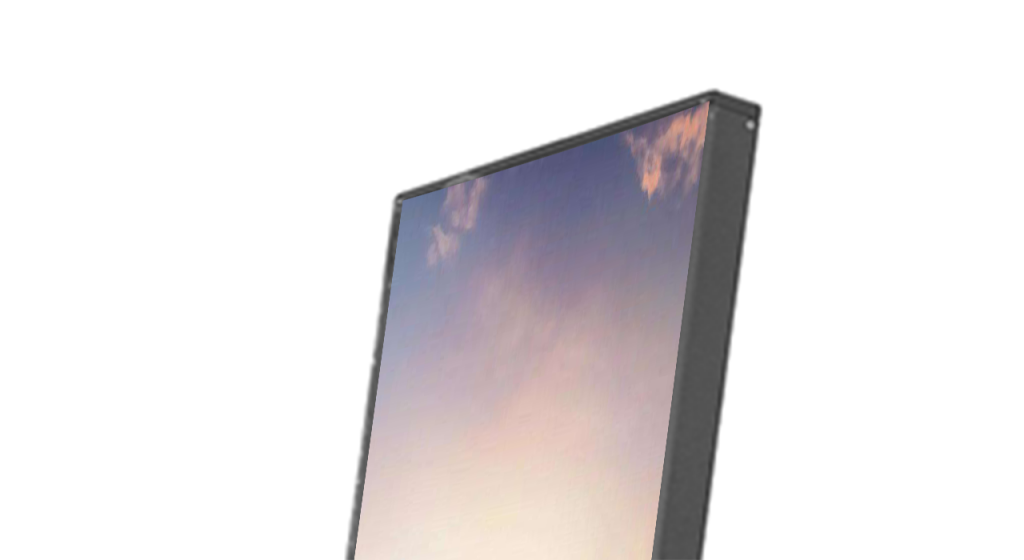

Ultra Thin
640x1920mm cabinet Standard Size series LED display with ultra thin cabinet design, the thickness is 100mm.
Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

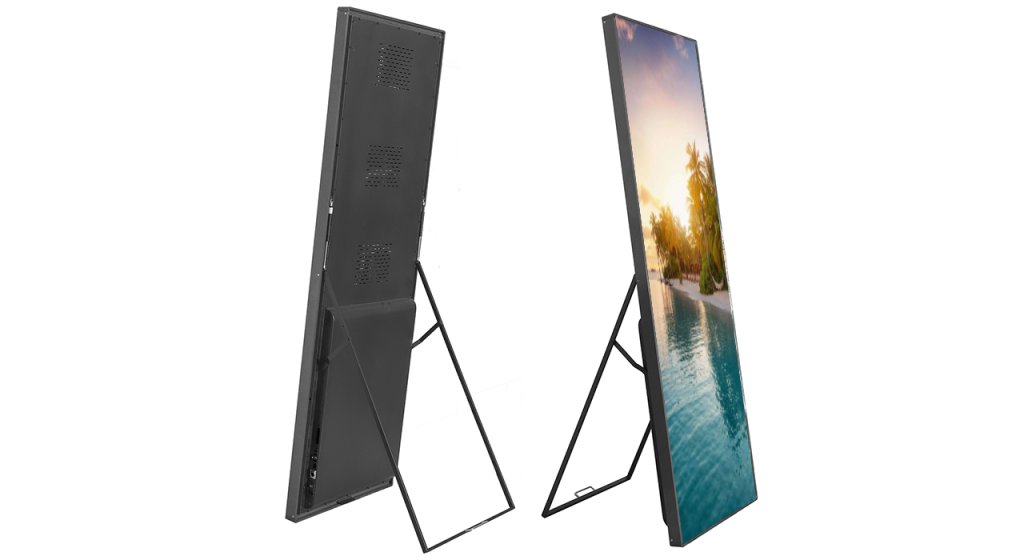

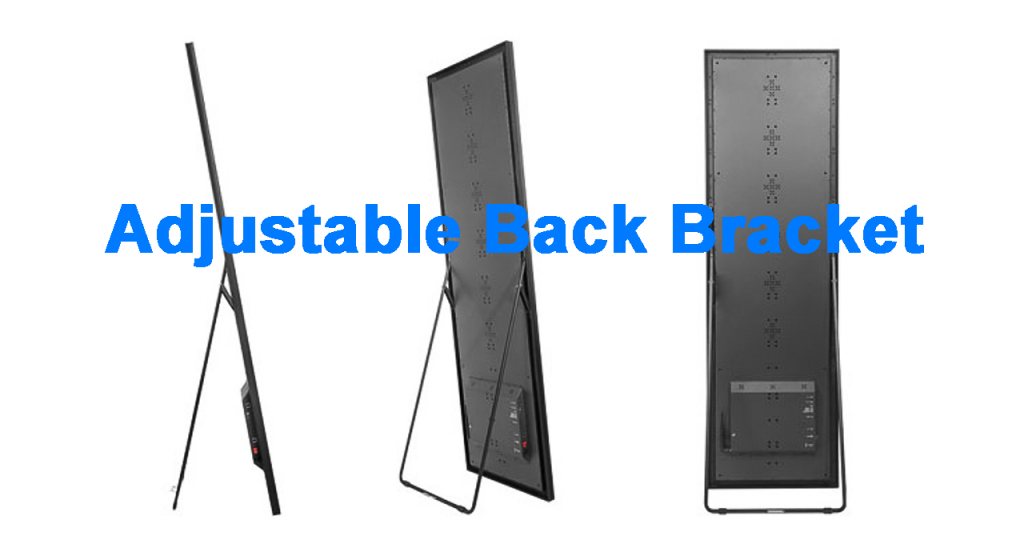

Adjustable Back Bracket
DR-1920P Series LED Poster Screen equiped with Hydraulic Back Bracket, which make it stably standing on ground.
Also this unique feature to make adjustable viewing angle available, and more and more audience can be reached.
Back Bracket is easily pull out when you want to support the LED poster and put in when you dont need it.

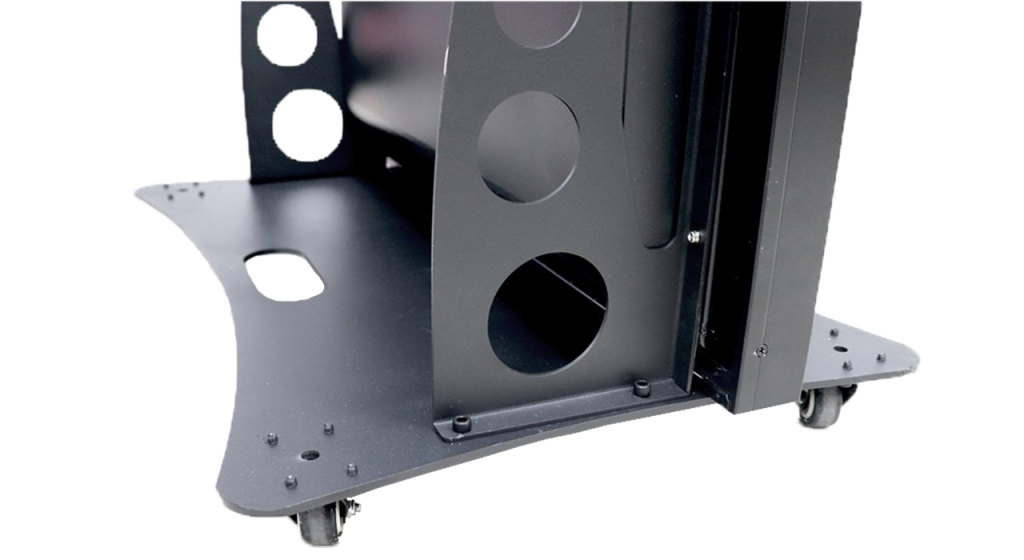

Unique Base-Standing Bracket
The base stand comes with 4 wheels that make the poster LED screen rotate freely and allow free movement in all directions.

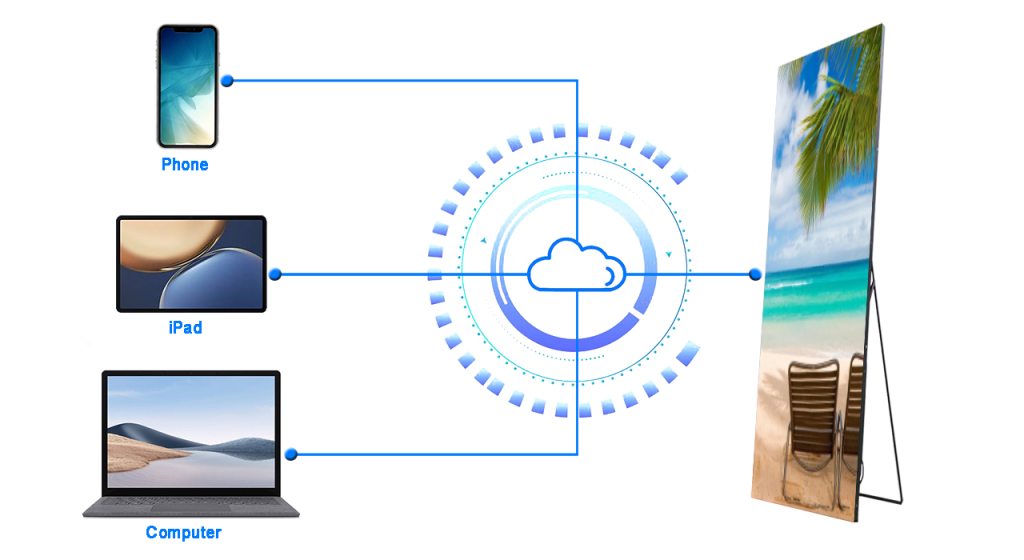

Smart Cloud Management
DR-1920P Series poster LED Screen support Synchronous & asynchronous control system,the LED screen content can be
updated via ipad, phone, PC computer, or notebook.Real time play, Cross-platform publish. Support USB or WIFI,
Support operation by IOS or Android devices.Support built-in media player to store and play content.

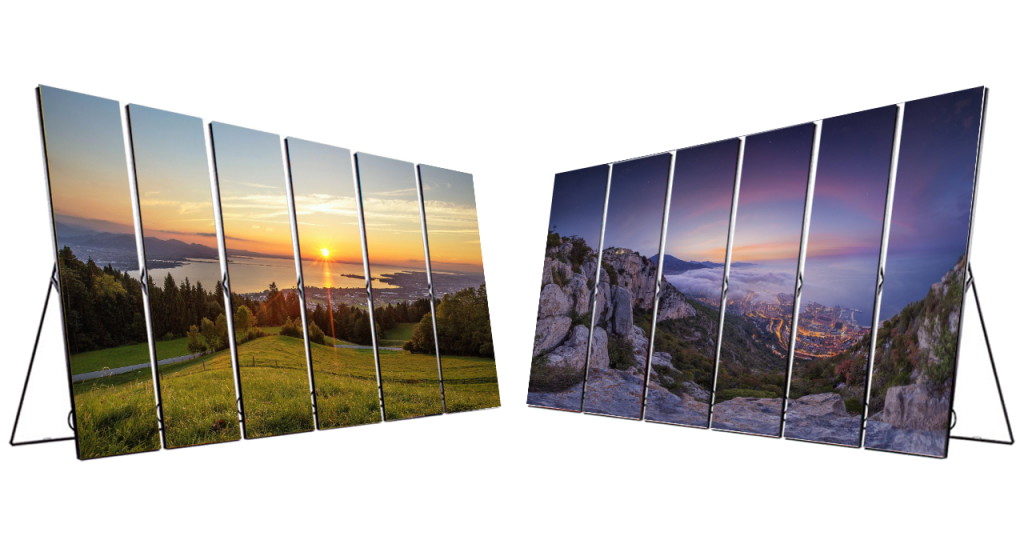

Seamless Cascade
DR-1920P Series poster LED display can be seamless cascade with multi screen to reach a large one.
LED screen can play as one big screen or separately.

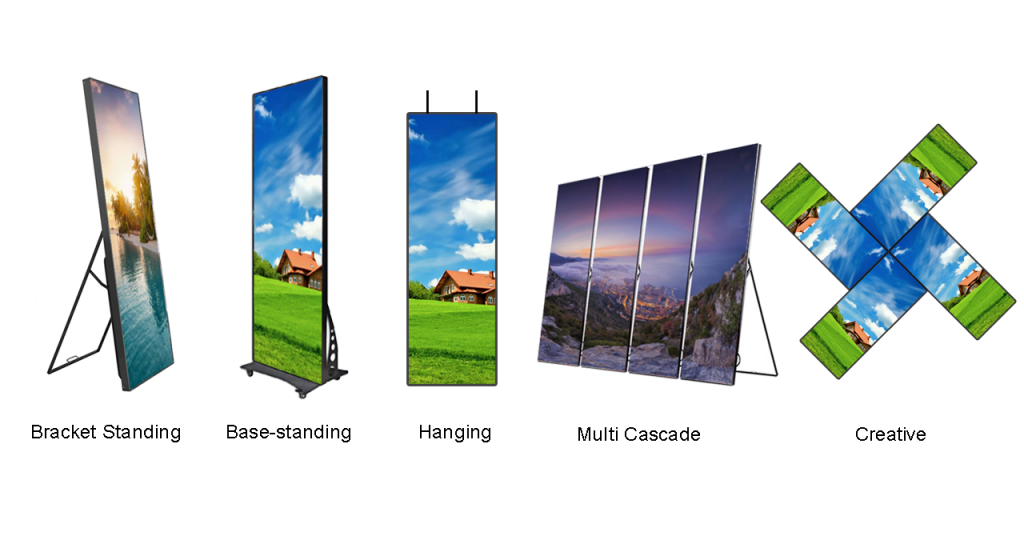

Multi-installation Method
DR-1920P Series poster LED display support Multi-installation ways,
The product is suitable for bracket standing installation, base-standing installation, lifting or hanging installation,
multi cascade installation and creative installation. no need steel structure to install, convenient and quickly.
Indoor 640x1920mm LED Poster Display DR-1920P Series Parameter
| Pixel Pitch (mm) | P2 | P2.5 | P3.076 | P4 |
| Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Density (Pixels/㎡) | 250,000 | 160,000 | 105,689 | 62,500 |
| Module Resolution (Pixel) | 160×80 | 128×64 | 104×52 | 80×40 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/26 | 1/20 |
| Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Weight (KG) | 40 | 40 | 40 | 40 |
| Brightness (CD/㎡) | ≥800 | ≥1,000 | ≥1,000 | ≥800 |
| Viewing Angle (°) | 120 | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 439 | 457 | 413 | 351 |
| Avg. Power Consumption (W/㎡) | 150 | 153 | 138 | 117 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
