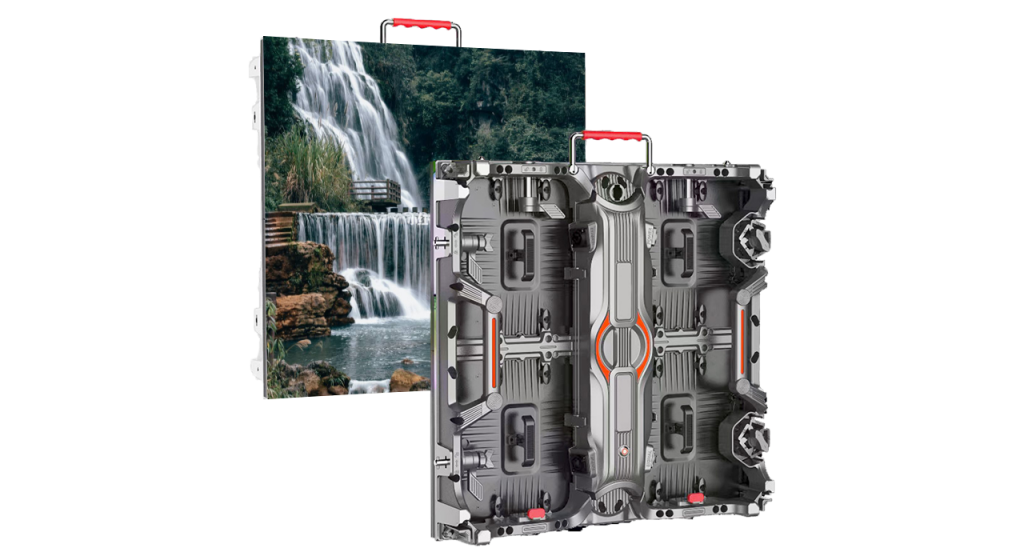

500x500mm Rental LED Display DR-500HR2 Series
500x500mm Rental LED Display DR-500HR2 Series
Ultra thin Design with Detachable back cover, High Precision Curve Lock for Curved Installation,Corner Protector for LED,
Magnetic Module, High Waterproof and Modules are arranged regardless of left and right

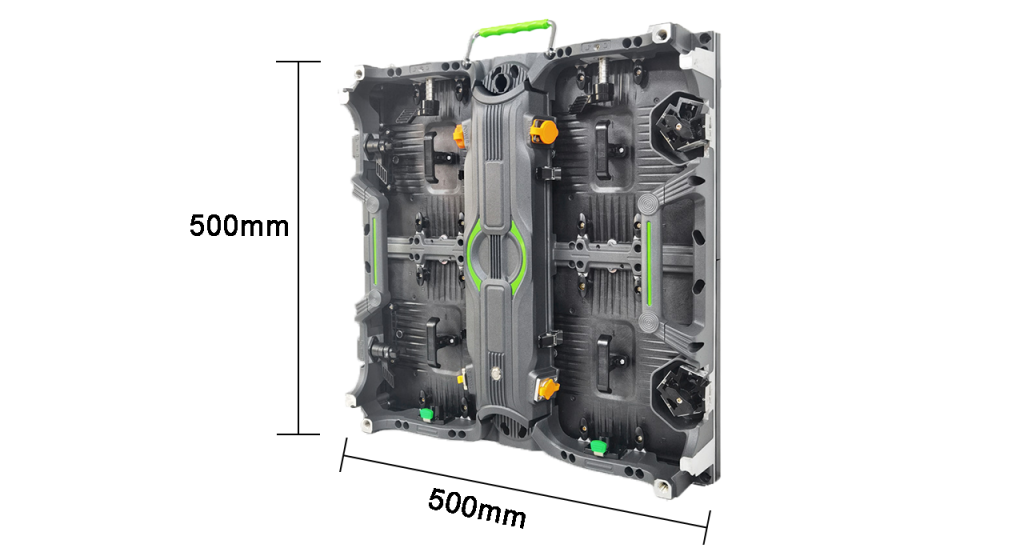

Slim design
500*500mm standard cabinet size, Ultra-Light die-casting aluminum.
ultra-thin thickness with 80mm. For easy transport and Portable;

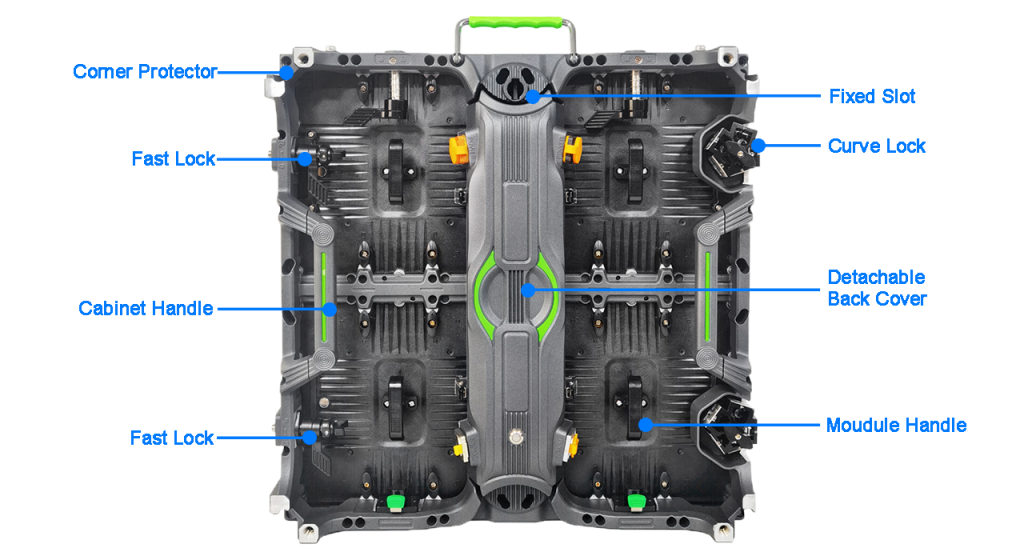

Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,
magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

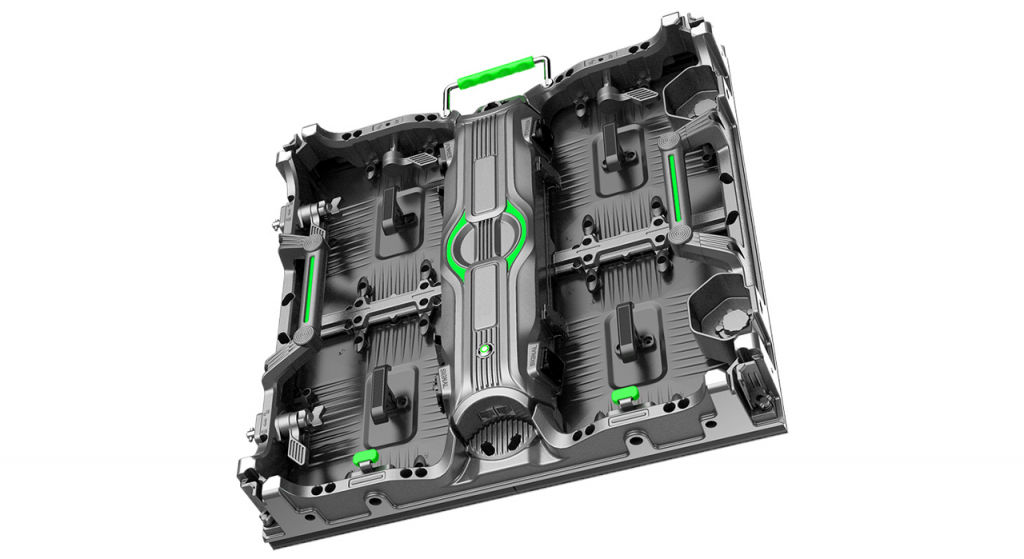

Dual Service Design
DR-500HR2 series LED display adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

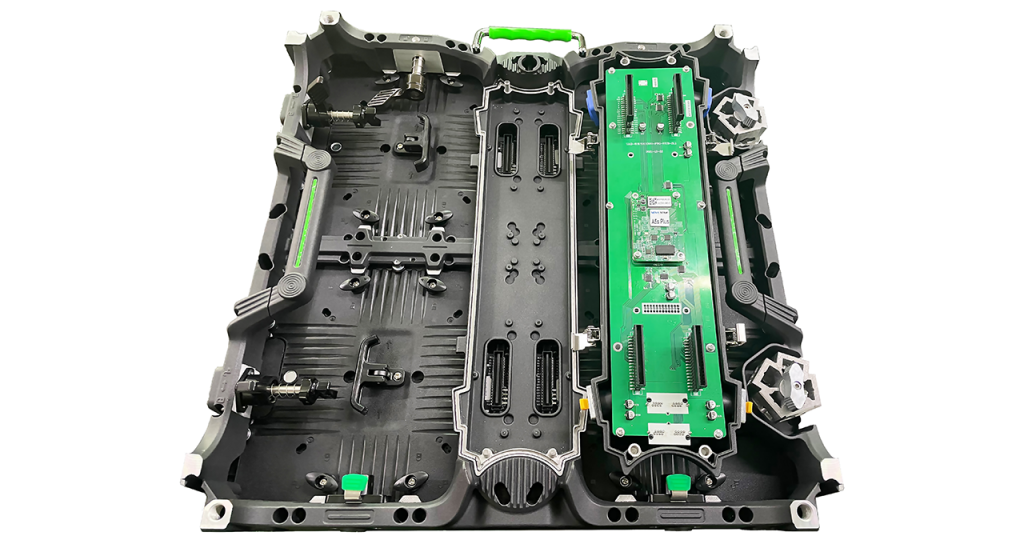

Detachable Back Cover
Hard Connection Design with detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back cover.

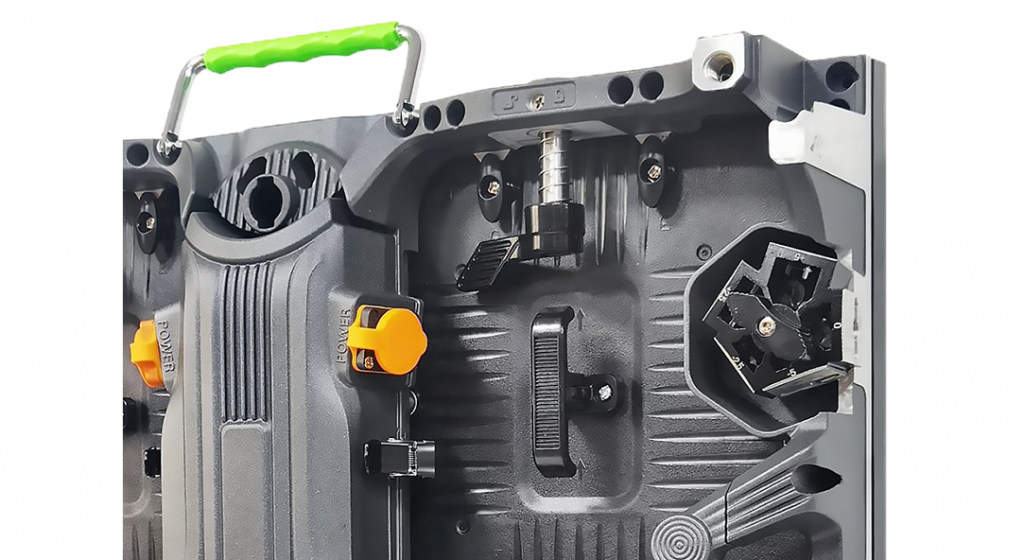

High Precision Curve Lock
Adopt high-precision curve lock design (-10° to +10°), rotation control, more accurate,
easy to use, and quickly adjust the degree of curve.

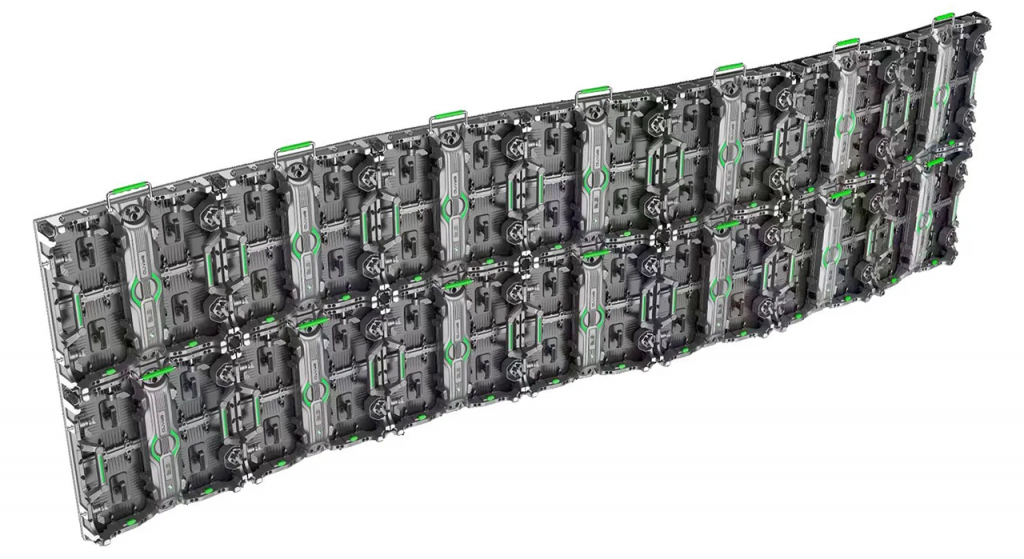

Curved Installation
Support curved installation.

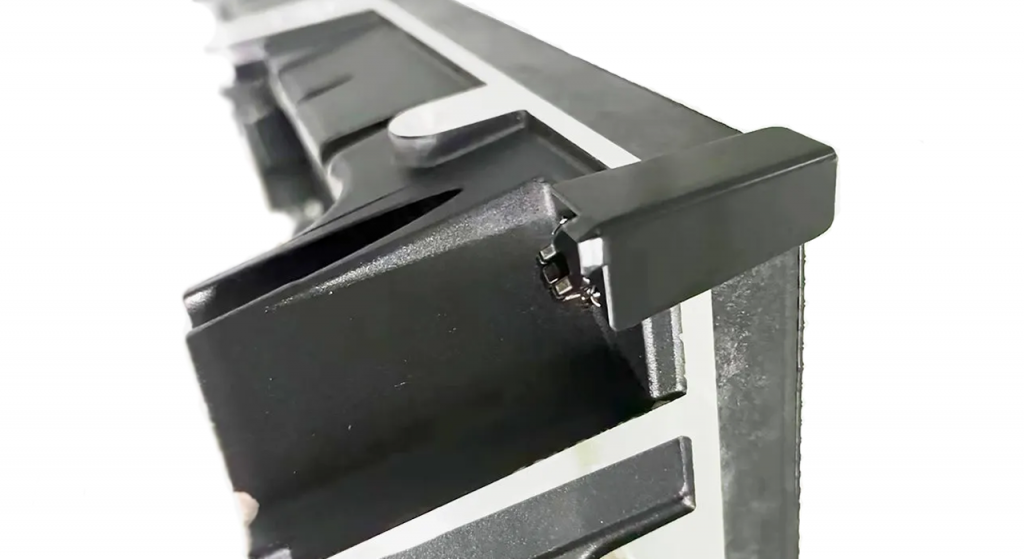

Corner Protector
The LED screen has four corners to prevent damage to the LED,Transportation, installation, operation,disassembly and assembly are more secure and easy to use.

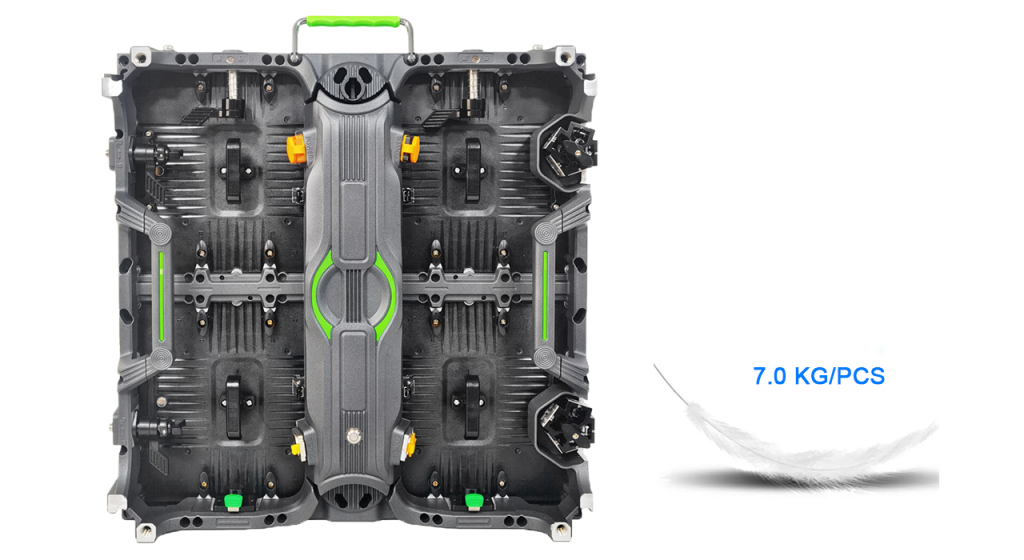

Lightweight and Thin
DR-500HR2 series LED display cabinet weighs 7KG/pc, easy to operate: one person to install, disassemble and maintain.
Outdoor 500x500mm Rental LED Display DR-500HR2 Series Parameter
| Pixel Pitch (mm) | P3.91 | P4.81 |
| Pixel Configuration | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 65,536 | 43,264 |
| Module Resolution (Pixel) | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7 | 7 |
| Brightness (CD/㎡) | ≥6,000 | ≥6,000 |
| Viewing Angle (°) | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x500mm Rental LED Display DR-500HR2 Series Parameter
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 |
| Pixel Configuration | SMD1515 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 147,456 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | ≥1,200 | ≥1,000 | ≥1,000 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (℃) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
