The abbreviation LED refers to a kind of semiconductor light source. Electric luminescence is the process through which an LED produces light. “Cold light” refers to the fact that the light is not generated by heating a metal filament, as is the case with traditional incandescent bulbs. Diodes, by contrast, produce light when they pass between two silicon semiconductors covered with a particular layer of material. One of the most power-efficient methods of generating light. There are no moving components in an LED, and they are frequently made of translucent plastic. In this way, a long lifespan is assured. LEDs produce nearly little heat when they are turned on. There is less need to cool the electrical components due to this.
In 1927, Russian inventor Oleg Losev produced the first LED. Infrared, red, and yellow LEDs were the only options available for many years. Everything from remote controllers to clock radios has these diodes.
Japanese physicist Shuji Nakamura showed the first effective blue LED in 1994. After introducing white and green LEDs, they laid the groundwork for the LED revolution in lighting and display technologies.
How Does It Work?

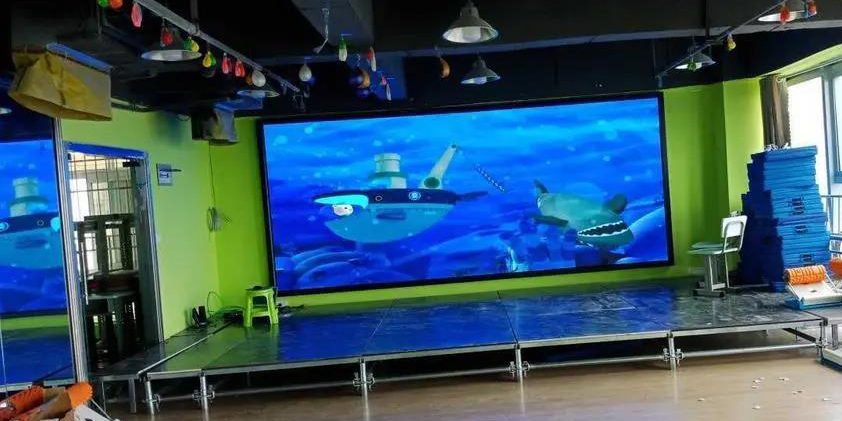

The LEDs of an LED display are arranged in a grid. The diodes collectively generate a picture on display by adjusting the brightness of each LED. New colors are formed when light from various colors is mixed together, and this process is known as additive color mixing. Red, green, and blue LEDs are arranged in a predetermined pattern to make up an LED display. A pixel is formed by combining these three colours. Millions of colours may be created by altering the intensity of the LEDs. From a particular distance, the LED screen’s-colored pixels seem to form a picture.
Types of LED Displays
LED display panels come in a wide variety of shapes and sizes. Alphanumeric displays, segmented displays, dot matrices, and light bar variants are prevalent. Each LED display has distinct advantages and disadvantages, which are explained in detail in the following sections.
Dot Matrix LED Display
To natural progression from 16-segment alphanumeric displays to LED dot matrix displays. As in a standard dot matrix LED display, the dots (LEDs) are often organized in a broader grid than tall, with dense clusters of individual diodes. It’s easy to understand how an LED matrix display works in its simplest form. Full alphanumeric displays may be generated in acceptable quality as a matrix by turning individual lights on and off in controlled sequences. To get the best results, the LED density and dot matrix resolution must be considered.
The LED dot matrix display is widely used in billboards, hoardings, signs, and video walls, among other applications. Compared to segmented number LEDs, they may use greater detail and clarity to convey more detailed information. Outdoor 3D LEDs for marketing or information are standard in city centers and business locations, and they may be readily configured to show.
7-Segment LED Display
In an LED 7-segment display, any number may be set out using an arrangement of seven different LED segments. An arrangement of diodes in a 7-segment display allows each LED segment to be independently lighted (or kept unlit), enabling the grouping to show any digit from zero to nine.
In addition to SSDs and seven-segment indicators, seven-segment displays may also be shortened to SSDs. Simple number displays on a wide variety of devices may be provided using these LED display types. In general, seven-segment screens can only show numbers. Their low number of segments makes it challenging to produce characters that can be read, making them unsuitable for lettering.
14-Segment LED Display
A 14-segment LED display employs twice as many diodes as a 7-segment display, but the basic format is the same. A typical figure-eight arrangement with diagonal diodes crossing across the center point. Several other names for this arrangement, including the Union Jack or the starburst LED show. Full alphanumeric readouts may now be achieved because of the increased number of LEDs, making the display more detailed. There are still letters in the alphabet that can’t be shown clearly even with 14-segment screens.
Arcade games and Pinball machines helped popularize the LED 14-segment display in the mid-1980s. The format is still utilized in specific design projects to produce a retro-inspired look. Many different devices still use 14-segment screens as a common display choice.
16-Segment LED Display
Displays that use 16-segment LEDs use the same general figure-eight module structure as 7- and 14-segment displays. A pair of diodes are added by dividing the top and lower horizontal portions in half. Graphical renderings of numerals and characters may now have far more depth. Alphanumeric LED display readouts on systems where a more complex dot matrix LED display is unfeasible or unneeded are often sufficient.
Common Uses
LED displays may be put to good use in a broad number of fields. They are widely utilized in business and retail settings, personal computers, and other consumer electronics. It is essential to remember that not all display types may be used for the purposes above. To pick the appropriate LED display sign for your specific use case, consider the display type, brightness, color, size, and the number of characters necessary.
LCD vs LED Displays
Consider the differences and similarities between LED and LCDs before making a final decision. When discussing LED displays, it’s essential to remember that the technology is part of the more prominent LCD family.
Liquid crystal display is referred to as LCD in the industry. It may be used in any liquid-crystal display (LCD) panel or display that employs liquid crystals to control where light is shown at any one time. Because so many LED displays use this technology, they may be classified as LCD screens. To classify LED displays as a subset, they must likewise employ LEDs to illuminate the pixels.
It’s also worth noting that LEDs are now found in almost all current LCDs. CCFLs (cold cathode fluorescent lamps) were formerly the most popular technique for illuminating LCDs, but the great majority of manufacturers now employ LED technology. These control systems are frequently developed for high brightness, high refresh rate, low power consumption, and a multicolour, considerable format functionality to grab the attention of people who observe them.
